Description
Specifications

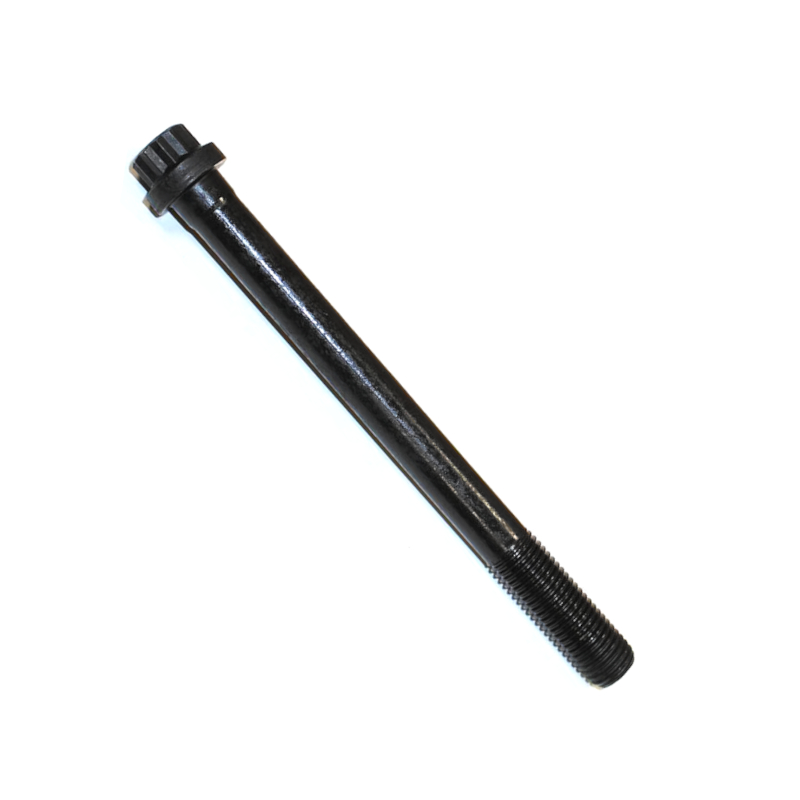

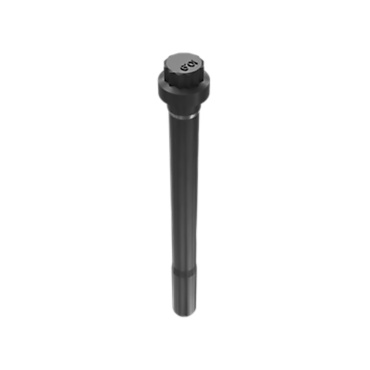

Type: 12 Point Head Bolt Material: STEEL Bolt Length (mm): 180 Bolt Type: 12 Point Material Class 11.9. Head Marking - 11.9 (1170 MPa Ultimate Tensile Strength) Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black. Thread Size (dia x pitch) (mm): M16X2 Grip Length (mm): 135 Drive (mm): 16 Thread: Coarse Head Height (mm): 16 Flange Diameter (mm): 24 Thread Size (mm): M16 Grade: 11.9 Hole Thread Pitch: 2.00 Overall Length (mm): 180
Compatible Models
